Failure Mode Analysis of Electrochemical Oxygen Sensors


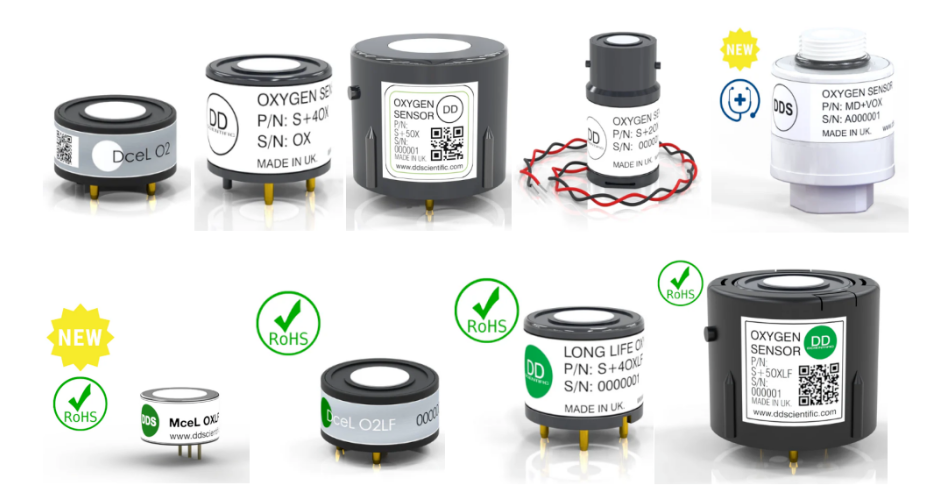

The Criticality of Oxygen Measurement

Sensor faults may lead to erroneous readings, operational inefficiency or safety hazards.

Oxygen Hazards of Oxygen-Enriched and Oxygen-Deficient Atmospheres

Maintaining proper oxygen levels in confined spaces is critical. Normal atmospheric oxygen concentration is 20.9%. Deviations from this threshold range pose severe risks:

Oxygen-Enriched Environments (>23.5%)

  • Elevated fire and explosion risks

  • Materials become more flammable with accelerated combustion rates

Oxygen-Deficient Environments (<19.5%)

  • Confusion, dizziness, impaired motor coordination

  • Nausea, syncope, loss of consciousness, and even fatalities

Oxygen detectors or continuous oxygen monitoring systems shall be deployed to mitigate suffocation risks and fire hazards within confined spaces, offshore platforms and industrial facilities.

Overview of Oxygen Sensor Failure Modes

① Natural Degradation Mechanism

  • Gradual consumption of internal components

  • Reduced output signal and prolonged response time

  • Progressive calibration drift over service life

  • Predictable service life determined by operating conditions

Service Life Explanation

The service life of these gas sensors depends on residual unoxidized lead inside. As the lead anode is gradually consumed via oxidation, sensor output declines. Once the lead anode is fully depleted, the sensor can no longer generate valid signals and requires replacement.

② Temperature Effects

  • Sensor output varies with temperature

  • Increased drift and degraded accuracy under extreme temperatures

  • Mitigated via temperature compensation

Rising temperatures accelerate the electrochemical oxidation rate of lead, which speeds up lead consumption and generates higher sensor output (commonly interpreted as increased sensitivity). However, prolonged high-temperature exposure accelerates anode depletion and shortens overall sensor service life.
At lower temperatures, reaction kinetics slow down and suppress lead oxidation. This reduces sensor output and extends response time, yet prolongs the effective service life of the lead anode.

③ Pressure Effects

  • Sensor output correlates directly with oxygen partial pressure

  • Pressure fluctuations induce significant reading errors

  • Stabilized sampling or pressure compensation is recommended

Typical On-Site Scenarios

  • Elevated oxygen readings occur under the following conditions:

    • Blocked exhaust outlets

    • Fluctuating gas flow rates

  • Unstable calibration performance

  • Readings shift with downstream valve positioning

Common Causes of Backpressure

  • Blocked or insufficient exhaust flow

  • Overlong or narrow sampling tubing

  • Downstream regulators or valves

  • Condensate buildup or particulate accumulation

④ Ventilation and Sampling Abnormalities

  • Restricted gas ingress leads to incorrect readings

  • Typical symptoms: weak signal and slow response

  • Root causes: clogged filters, condensate accumulation, poorly designed flow paths

Blocked or partially obstructed gas diffusion inlet (caused by dust, liquid infiltration or contaminated filters); degraded or clogged dust-proof breathable membrane.Consequence: Reduced sensitivity and extended response time.

⑤ Exposure to Interfering Gases and Chemicals

  • Specific gases disrupt sensor performance

  • Interfering substances include acid gases and organic solvents

  • Adverse impacts: signal drift and permanent sensitivity loss

Electrode poisoning: Irreversible chemical reactions between contaminants and catalysts/working electrodes (e.g., sulfur compounds, organosilicones, halogenated gases), which occupy active sites on the working electrode.Consequence: Partial or complete loss of sensor sensitivity.

⑥ Mechanical Damage

  • Damage induced by impact, vibration or improper installation

  • Unstable output or sudden catastrophic failure

  • Careful handling and standardized installation are mandatory

  1. Ruptured or deformed dust-proof breathable membrane from physical shock, overpressure or rough handling, damaging the controlled gas diffusion barrier

    Result: Unrestricted gas infiltration → erratic or exaggerated concentration readings

  2. Cracks on sensor housing or compromised sealing integrity from impact, vibration or assembly defects

    Result: Electrolyte leakage, ambient air intrusion and total sensor failure

  3. Electrolyte leakage due to mechanical stress or seal failure, leading to electrolyte volume loss

    Result: Attenuated signal output, sensor desiccation and permanent malfunction

  4. Damaged or missing filter/protective cover, or incorrect cover installation, eliminating particulate and liquid protection

    Result: Accelerated contamination and secondary sensor failures

⑦ Improper Storage & Handling

  • Poor storage conditions degrade sensor performance prior to commissioning

  • High-temperature or long-term storage shortens service life

⑧ System Design Factors

  • Select sensor models matching application scenarios

  • Optimized sampling system design

  • Appropriate signal conditioning circuitry

  • Prevent condensate formation and pressure fluctuations

On-Site Diagnostic Guidelines & Summary of Best Practices

✅ Monitor trends of calibration drift✅ Track variations in sensor response time✅ Investigate inconsistent or fluctuating readings✅ Select sensor models fit for target applications✅ Stabilize environmental operating conditions✅ Maintain clean and unobstructed sampling flow paths✅ Implement periodic inspection and maintenance routines
